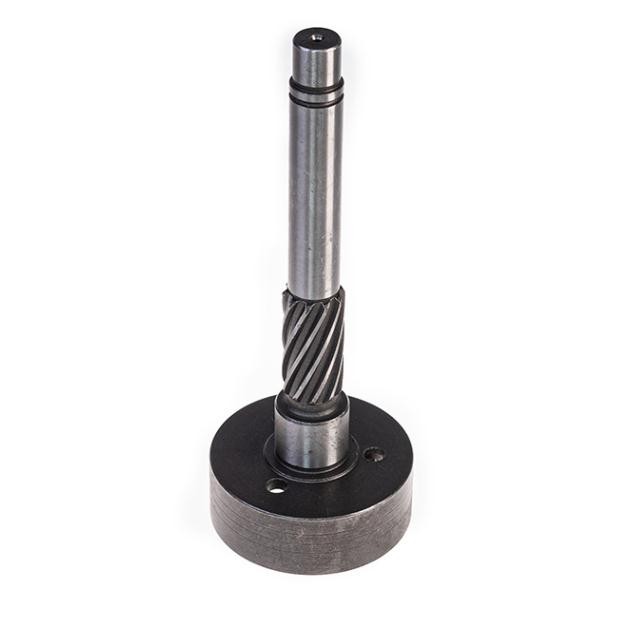

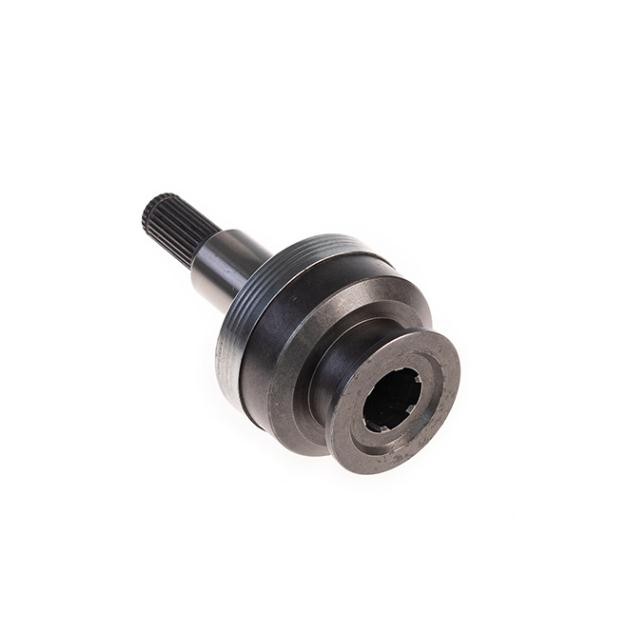

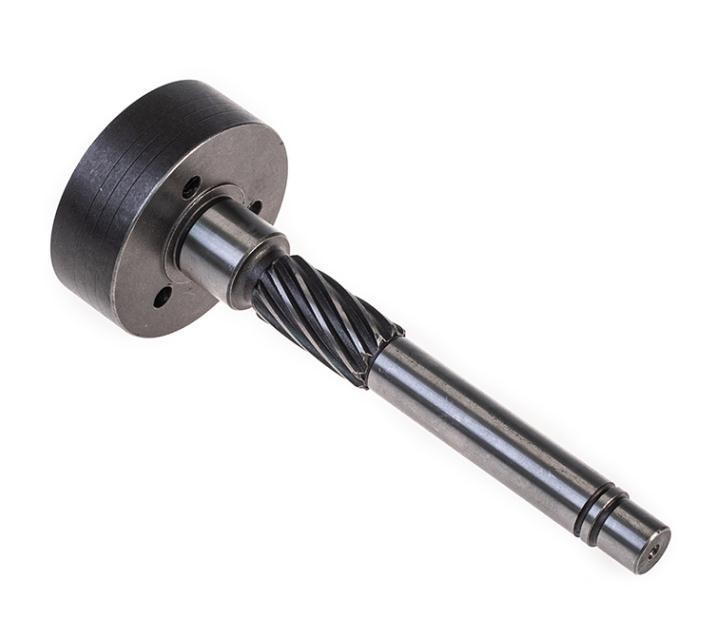

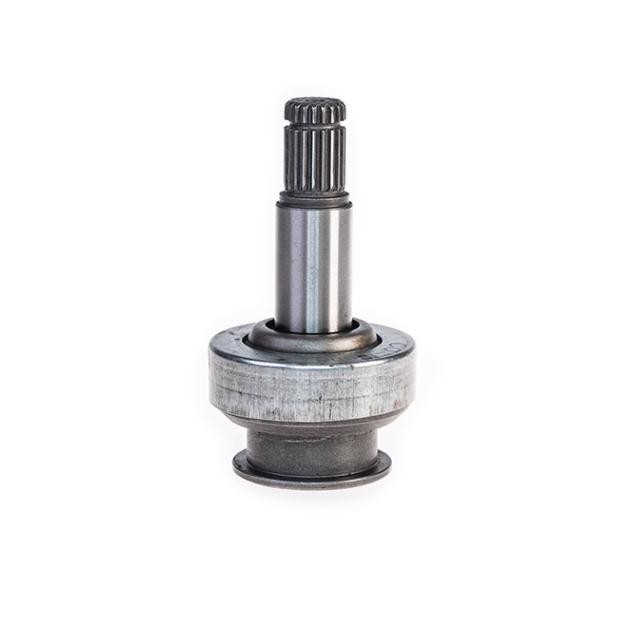

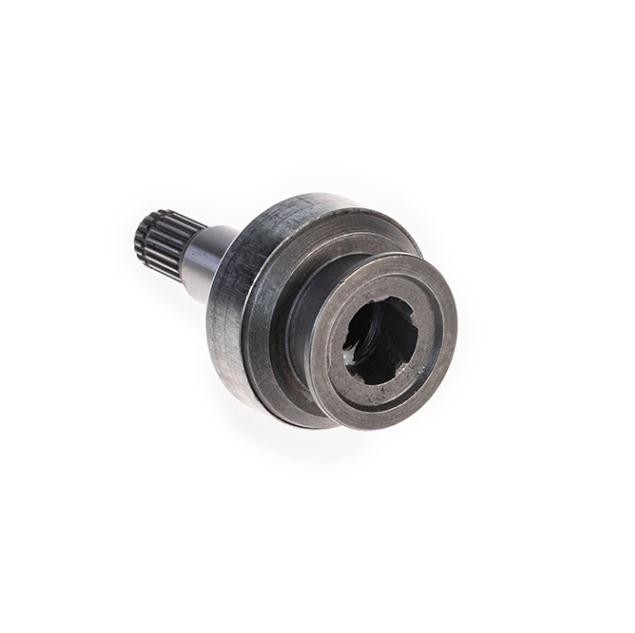

Agricultural Tool Transmission Spline Gear Drive Shaft with ISO 9001
A gear shaft with the gearing profiles at each end are called intersecting shaft gears. Spiral Bevel gears are examples of the gear profiles used on these types of precision made shafts.
Share
Sample service
We provide free sample for confirmation and customer bears the freight charges
OEM service
Having our own factory and professional technicians,we welcome OEM orders as well.We can design and produce the specific product you need according to your detail information
After-sale Service
Our enthusiastic and friendly customer service representatives are ready to assist with any questions or problems
| Item | Spur Gear Axle Shaft |
| Material | 4140,4340,40Cr,42Crmo,42Crmo4 |
| OEM NO | Customize |
| Certification | ISO/TS16949 |
| Test Requirement | Magnetic Powder Test, Hardness Test, Dimension Test |
| Color | Paint ,NaturalFinish,MachiningAll Around |
| Material | Aluminum: 5000series(5052...)/6000series(6061…)/7000series(7075…) |
| Steel: Carbon Steel,MiddleSteel,SteelAlloy,etc. | |
| StainessSteel: 303/304/316,etc. | |
| Copper/Brass/Bronze/Red Copper,etc. | |
| Plastic:ABS,PP,PC,Nylon,Delrin(POM),Bakelite,etc. | |
| Size | According to Customer's drawing or samples |

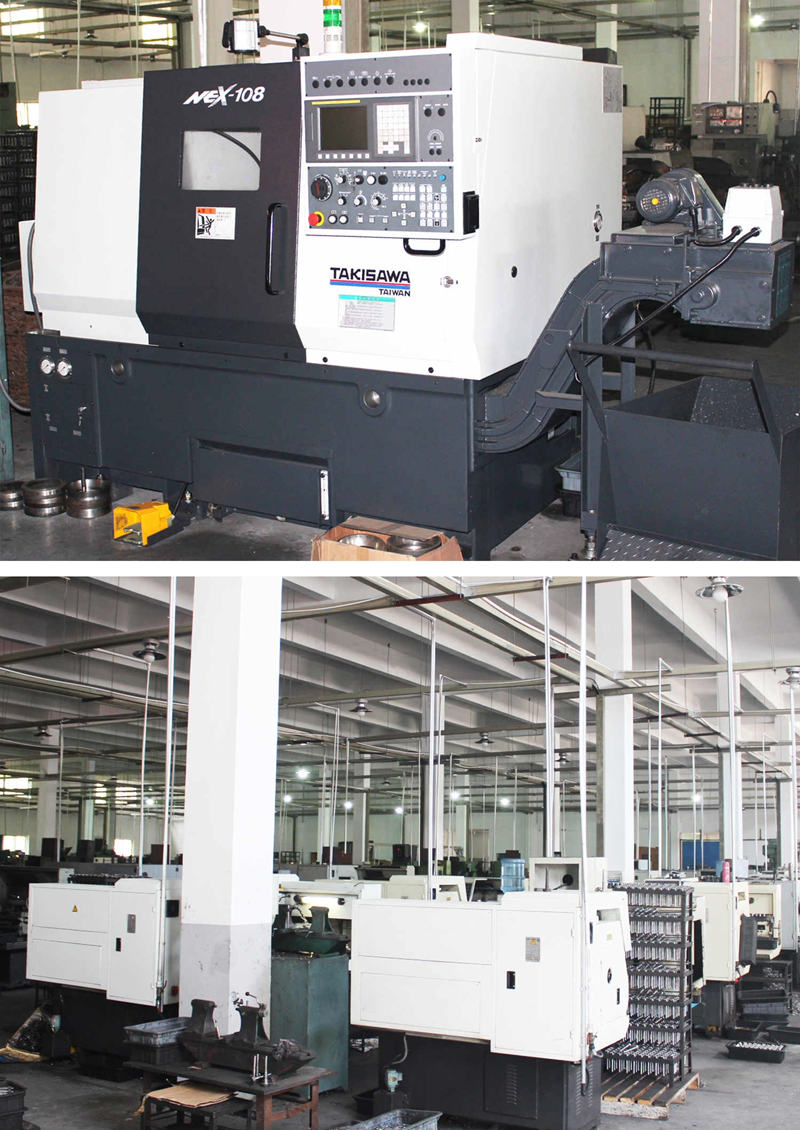

| Process | CNC machining,Turning,Milling,Stamping,Grinding,Welding,WireInjection,Cutting,etc. |
| Tolerance | ≥+/-0.03mm |
| Surface Treatment | (Sandblast)&(Hard)&(Color)Anodizing,(Chrome,Nickel,Zinc…)Plating,Painting,Powder Coating,Polishing,Blackened,Hardened,Lasering,Engraving,etc. |
| File Formats | ProE,SolidWorks,UG,CAD,PDF(IGS,X-T,STP,STL) |
| Sample | Available |
| Packing | Spline protectcover,Woodbox,Waterproofmembrane; Or per customers' requirements. |
